Common mode inductor core

The iron-based nanocrystalline alloy common mode filter inductor core has characteristics such as high Bs, high permeability, and high Curie temperature< br> Main application areas: new energy vehicles, solar energy storage and charging, servers and communication power supplies, industrial control, consumer electronics, rail transit, renewable new energy, aerospace, etc.

Key words:

Soft magnetic material series, magnetic core series, electronic components series

Classification:

Common mode inductor core

E-mail:

sales@dayou-tech.com

Consulting
Contact Us
  • Product description
  • Model number
  • Typical graph
  • Main application field

  • The company has developed a variety of serialized common mode inductor cores based on different application needs.

    The nanocrystalline common mode inductor core is divided into three series of products: 1K107F (high permeability), 1K107G (medium permeability), and 1K107H (low permeability).

    Performance characteristics

    High saturation magnetic induction intensity, BS value of about 1.2T

    The hysteresis coefficient is extremely low, approaching 0

    High magnetic permeability, wide range of magnetic permeability, suitable for EMI filtering in different situations

    Magnetic properties

    Num
    Saturated magnetic induction Bs (T)

    1.2
    Coercivity Hc (A/m)

    <2
    Initial magnetic permeability ui (1.0 * 104)

    8
    Maximum magnetic permeability um (1.0 * 104)

    40
    Electrical resistivity ρ (u Ω• cm)

    ＞130
    Curie temperature Tc (℃)

    570
    Hysteresis expansion coefficient λ s (x10-6)

    ≈0

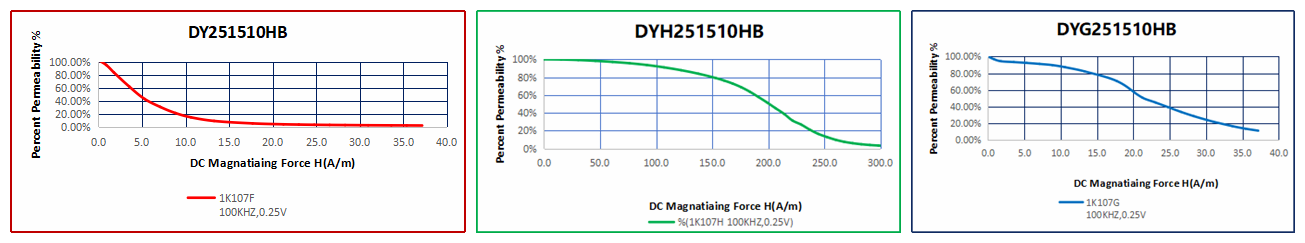

  • Three series of products: 1K107F (high permeability), 1K107G (medium permeability), and 1K107H (low permeability)

    Alloy grade series

    thickness

    (μm)



    Hc

    (A/m)

    μr（10kHz）

    （×104）

    μr（100kHz）

    （×104）

    Ps（reference value）

    @（100K 0.2 T）

    (W/Kg)

    		 characteristic





    1K107F











    High magnetic conductivity







    20

    ≤0.8

    8-12

    3.0

    50



    Extremely high initial magnetic permeability,

    Good μ - F characteristics







    17

    ≤0.8

    8-12

    3.5

    45

    15

    ≤0.8

    7-12

    4.0

    40

    13

    ≤0.8

    7-10

    4.5

    36

    1K107G

    		 Medium magnetic conductivity

    18

    ≤1.0

    4-6

    2.0

    70

    Excellent u-F characteristics,

    Anti saturation ability better than 1K107F

    1K107H

    		 Low magnetic permeability

    18

    ≤2.0

    1-2万

    1-1.5万

    70

    		 Excellent μ - F characteristics, with anti saturation ability better than 1K107G

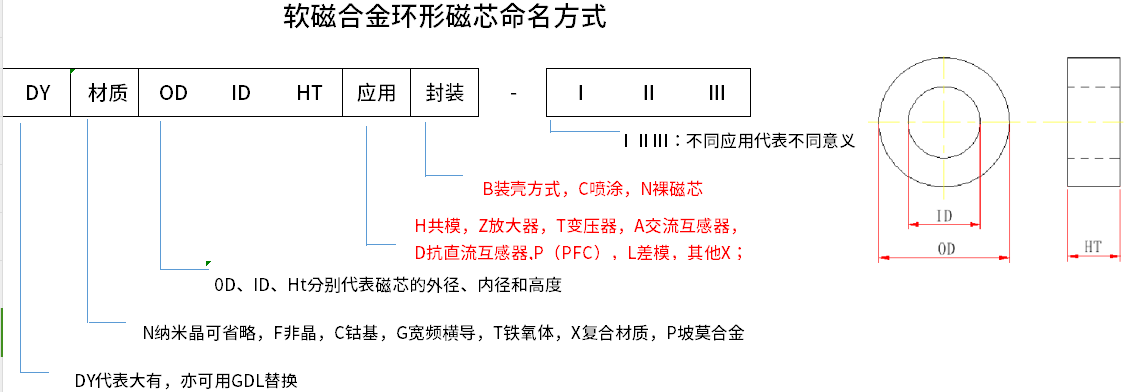

    Naming convention for 1K107F high magnetic permeability annular common mode inductor magnetic core series



    Common mode inductor serialization (ring) -1K107F high magnetic conductivity B30/B35/B40/B45 series
    Serial number Specification and model Bare magnetic core size (mm) External dimensions(mm) Ae Le weight AL value(μH/N2)
    OD ID HT mm2 mm g 10kHz 100kHz
    typ typ typ ref ref ref ±35% ±25%
    Full range B30 series B35 series B40 series B45 series
    1 DY100705HB-B30/35/40/45 10*7.5*4.5 12.6 5.5 6.73 4.50  27.49  0.9  16.5  6.2  7.2  8.2  9.2
    2 DY120805HB-B30/35/40/45 11.8*8.3*4.5 14 6.6 6.2 6.30  31.57  1.4  20.1  7.5  8.8  10.0  11.3
    3 DY151005HB-B30/35/40/45 14.8*10.2*5 17.64 7.9 6.77 9.20  39.27  2.6  23.6  8.8  10.3  11.8  13.3
    4 DY161008HB-B30/35/40/45 15.8*10.5*8 17.8 8.55 9.8 16.96  41.31  5.0  41.3  15.5  18.1  20.6  23.2
    5 DY161005HB-B30/35/40/45 15.8*10.2*5 18 8.55 7.42 11.20  40.84  3.3  27.6  10.3  12.1  13.8  15.5
    6 DY181305HB-B30/35/40/45 17.5*13.0*5 19.6 11.52 6.3 9.00  47.91  3.1  18.9  7.1  8.3  9.4  10.6
    7 DY181306HB-B30/35/40/45 17.5*13*6 19.13 10.7 8 10.80  47.91  3.7  22.7  8.5  9.9  11.3  12.7
    8 DY181108HB-B30/35/40/45 17.6*11.2*8 20.5 9.12 9.52 20.48  45.24  6.7  45.5  17.1  19.9  22.8  25.7
    9 DY181110HB-B30/35/40/45 17.6*11.4*10 20 9.22 11.6 24.80  45.55  8.1  54.7  20.5  23.9  27.4  30.8
    10 DY191305HB-B30/35/40/45 18.5*13*5 21 10.72 7.33 11.00  49.48  3.9  22.3  8.4  9.8  11.2  12.6
    11 DY191408HB-B30/35/40/45 19*14*8 22.66 12.1 10.3 16.00  51.84  6.0  31.0  11.6  13.5  15.4  17.3
    12 DY191505HB-B30/35/40/45 19*15.1*5 20.96 13 7.15 7.80  53.56  3.0  14.6  5.5  6.4  7.3  8.2
    13 DY201208HB-B30/35/40/45 19.6*12.5*8 22.28 10.63 10.1 22.72  50.42  8.2  45.3  17.0  19.8  22.6  25.4
    14 DY201210HB-B30/35/40/45 20*12.5*10 22.8 10.3 12.67 30.00  51.05  11.0  59.1  22.2  25.8  29.5  33.2
    15 DY211510HB-B30/35/40/45 21*15.1*10 23.8 12.55 12.6 23.60  56.71  9.6  41.8  15.7  18.3  20.9  23.5
    16 DY221710HB-B30/35/40/45 22*17.1*10 24.5 15.2 12.4 19.60  61.42  8.7  32.1  12.0  14.0  16.0  18.0
    17 DY251510HB-B30/35/40/45 25*15.1*10 28.1 13.06 12.3 39.60  62.99  18.0  63.2  23.7  27.7  31.6  35.6
    18 DY251610HB-B30/35/40/45 25*16.2*10 27.6 13.8 12.6 35.20  64.72  16.4  54.7  20.5  23.9  27.3  30.7
    19 DY251710HB-B30/35/40/45 25*17.2*10 27.9 15.24 13.06 31.20  66.29  14.9  47.3  17.7  20.7  23.7  26.7
    20 DY252010HB-B30/35/40/45 25*20*10 27.7 17.9 12.9 20.00  70.69  10.2  28.4  10.7  12.4  14.2  16.0
    21 DY261610HB-B30/35/40/45 25.6*16.2*10 28.3 13.9 12.74 37.60  65.66  17.8  57.6  21.6  25.2  28.8  32.4
    22 DY281810HB-B30/35/40/45 27.8*18.2*10 30 16.35 12.51 38.40  72.26  20.0  53.4  20.0  23.4  26.7  30.0
    23 DY281815HB-B30/35/40/45 27.5*18*15 29.9 16.2 17.1 57.00  71.47  29.3  80.2  30.1  35.1  40.1  45.1
    24 DY302010HB-B30/35/40/45 30*20*10 33.12 17.6 13.3 40.00  78.54  22.6  51.2  19.2  22.4  25.6  28.8
    25 DY322010HB-B30/35/40/45 31.5*20*10 34.24 18.2 13 46.00  80.90  26.8  57.2  21.4  25.0  28.6  32.2
    26 DY322512HB-B30/35/40/45 32*25*12 35.6 22.24 15.65 33.60  89.54  21.7  37.7  14.1  16.5  18.9  21.3
    27 DY302015HB-B30/35/40/45 30*20*15 33.6 17.6 17.8 60.00  78.54  33.9  76.8  28.8  33.6  38.4  43.2
    28 DY332310HB-B30/35/40/45 32.8*23.3*10 36.5 20.33 13.55 38.00  88.12  24.1  43.4  16.3  19.0  21.7  24.4
    29 DY332315HB-B30/35/40/45 33*23.3*15 35.85 21 18 58.20  88.44  37.1  66.2  24.8  28.9  33.1  37.2
    30 DY362820HB-B30/35/40/45 35.6*28.4*20 38.9 25.15 23.1 57.60  100.53  41.7  57.6  21.6  25.2  28.8  32.4
    31 DY402510HB-B30/35/40/45 40*25.2*10 43.5 22.22 14.3 59.20  102.42  43.7  58.1  21.8  25.4  29.1  32.7
    32 DY402515HB-B30/35/40/45 40*25*15 43.7 21.6 18.7 90.00  102.10  66.2  88.6  33.2  38.8  44.3  49.8
    33 DY403015HB-B30/35/40/45 40*30*15 43 28 18.36 60.00  109.96  47.5  54.9  20.6  24.0  27.4  30.8
    34 DY403215HB-B30/35/40/45 40*32*15 44.8 28.5 18.85 48.00  113.10  39.1  42.7  16.0  18.7  21.3  24.0
    35 DY402520HB-B30/35/40/45 40*25*20 44.9 21.45 24.7 120.00  102.10  88.2  118.2  44.3  51.7  59.1  66.5
    36 DY453015HB-B30/35/40/45 44.5*30.3*15 47.95 27.3 17.9 85.20  117.50  72.1  72.9  27.3  31.9  36.4  41.0
    37 DY503220HB-B30/35/40/45 50*32*20 53.6 28.4 24 144.00  128.81  133.5  112.4  42.1  49.2  56.2  63.2
    38 DY504020HB-B30/35/40/45 50*40*20 53.7 36.93 22.9 80.00  141.37  81.4  56.9  21.3  24.9  28.4  32.0
    39 DY594020HB-B30/35/40/45 59*40*20 63.55 36.57 24.4 152.00  155.51  170.2  98.3  36.8  43.0  49.1  55.2
    40 DY644020HB-B30/35/40/45 63.6*40*20 68 36.7 24.4 188.80  162.73  221.2  116.6  43.7  51.0  58.3  65.6
    41 DY805020HB-B30/35/40/45 79.6*50.7*20 84 46.3 24.85 231.20  204.67  340.7  113.6  42.6  49.7  56.8  63.9
    42 DY906020HB-B30/35/40/45 89.4*60*20 94.1 54.95 24.3 235.20  234.68  397.4  100.8  37.8  44.1  50.4  56.7
    43 DY1008020HB-B30/35/40/45 99.6*81*20 104.6 76.1 24 148.80  283.69  303.9  52.7  19.8  23.1  26.4  29.7



    Naming convention for 1K107F high conductivity common mode inductor magnetic core series (DYQ rectangular spray common mode inductor magnetic core)

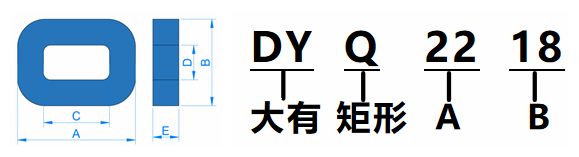

    1K107F High Conductivity Common Mode Inductance Core Series (DYQ Rectangular Spray Common Mode Inductance Core)
    Specification and model Size before spraying(mm) Size after spraying(mm)

    Ae



    (mm²)

    Le



    (mm)

    		 AL(μH/N²)
    Lout Wout Lin Win Ht Lout Wout Lin Win Ht ±35% ±25%
    @10kHz @100kHz
    DYQ1412 13.9  12.2  7.7  6.0  3.6  14.4  12.7  7.2  5.5  4.1  8.9  35.9  18.8  9.4
    DYQ1915 18.5  15.1  10.5  7.1  4.0  19.0  15.6  10.0  6.6  4.5  12.8  46.5  20.8  10.4
    DYQ2218 22.0  18.2  13.0  9.2  4.5  22.5  18.7  12.5  8.7  5.0  16.2  57.3  21.4  10.7
    DYQ2818 27.9  18.0  17.9  8.0  5.0  28.4  18.5  17.4  7.5  5.5  20.0  66.3  22.7  11.4
    DYQ3225 31.9  24.5  17.9  10.5  7.0  32.4  25.0  17.4  10.0  7.5  39.2  77.6  38.0  19.0
    DYQ3425 33.5  24.5  19.5  10.5  7.0  34.0  25.0  19.0  10.0  7.5  39.2  80.7  36.5  18.3

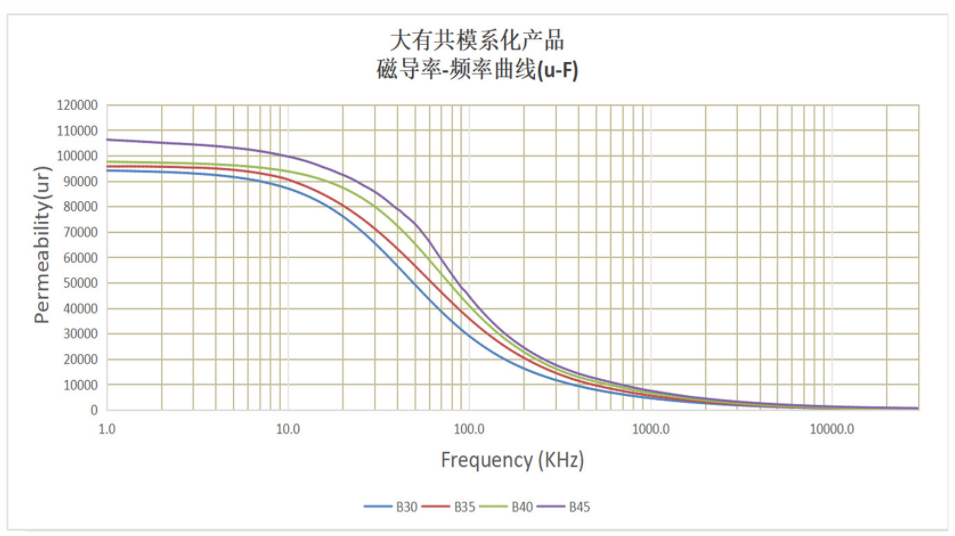

  • 1K107F High Conductivity Common Mode Inductance Core Series - Frequency&Effective Magnetic Permeability Curve

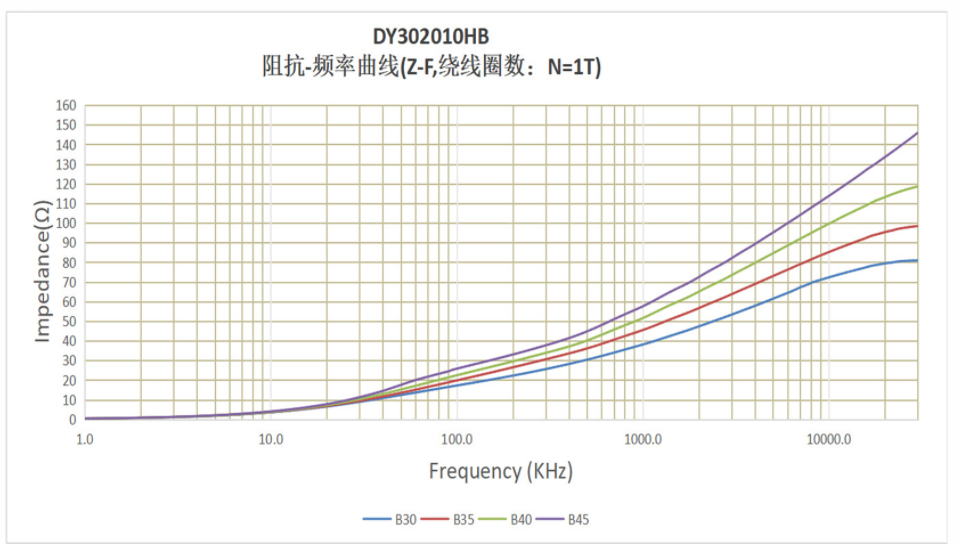

    1K107F High Conductivity Common Mode Inductive Core Series - Frequency&Impedance Curve

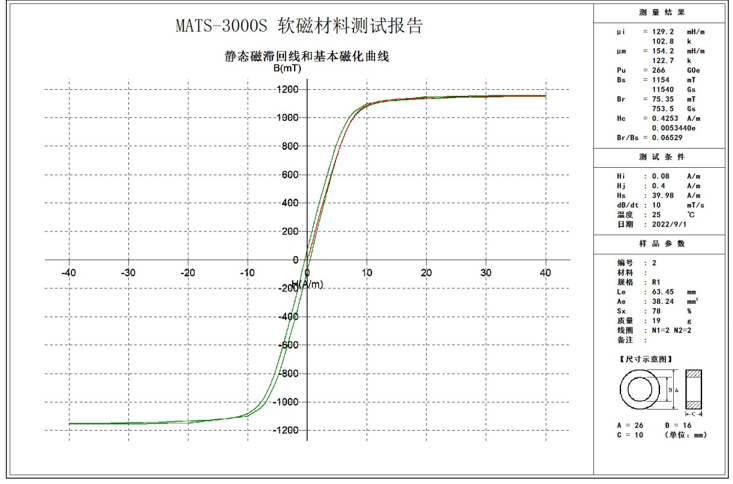

    1K107F High Conductivity Common Mode Inductive Core Series - Typical DC Hysteresis Loop

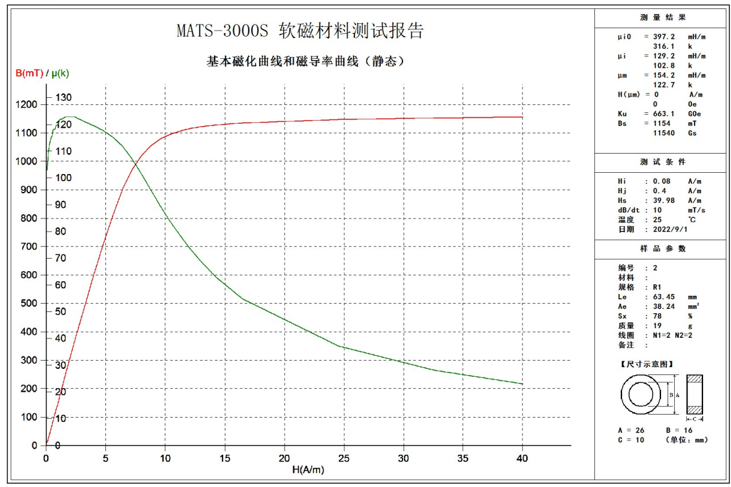

    1K107F High Conductivity Common Mode Inductance Core Series - Typical DC Magnetization Curve

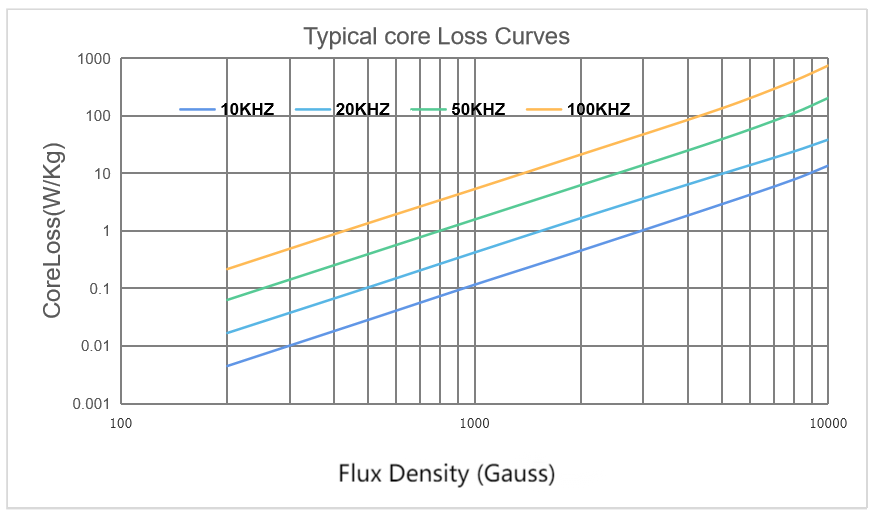

    1K107F High Conductivity Common Mode Inductance Core Series - Typical Loss Curve

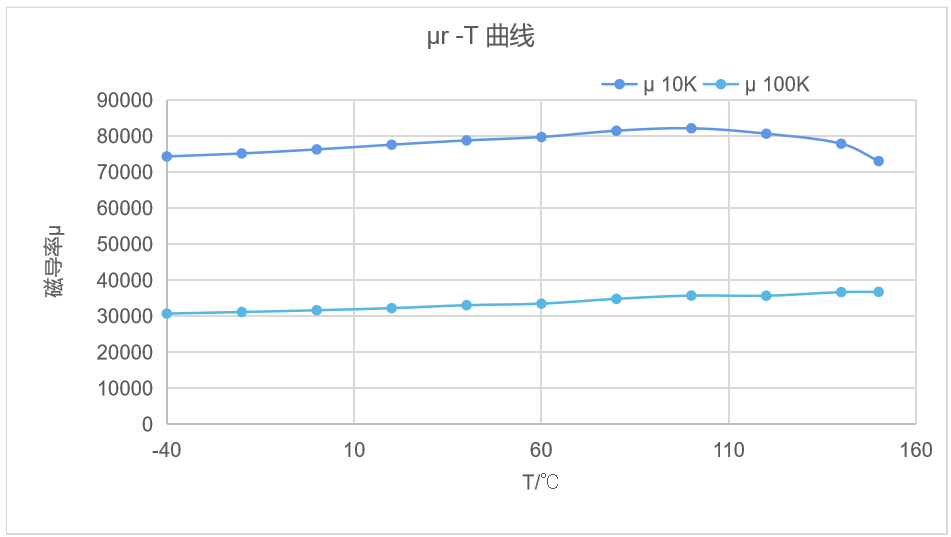

    1K107F High Conductivity Common Mode Inductance Core Series - Typical Temperature Characteristic Curve

  •
